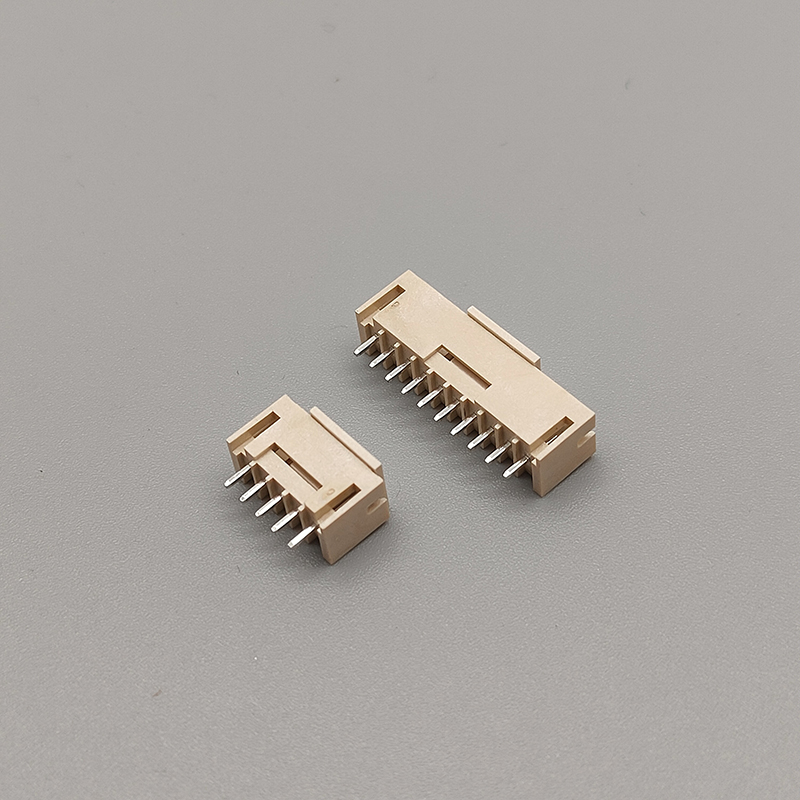

T2001通孔回流系列 2mm間距

同類產品：

系列：T2001

間距：2.0mm

孔位：（02~16）

溫度范圍:-25℃~+105℃

額定電壓：250V AC DC

額定電流：2.0A AC DC

產品詳情

-

技術參數

                                                   Product Parameter

Circuits (maximum)2Color - ResinBlack
Flammability?94V-0GenderReceptacle
Glow-Wire CapableGlow-Wire CapableKeying to Mating PartNone
Lock to Mating PartYesMaterial - ResinNylon
Packaging TypeBagPitch - Mating Interface3.00mm
Temperature Range - Operating-40° to +105°CContact resistance≥1000MΩ
Rated voltage250V AC DCRated current2A AC DC
Withstand Voltage1000V AC/minutePlatingTin


                                                       Product Compliance



EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Disclaimer

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. This information is subject to change. The part numbers that CJT has identified as EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part numbers that CJT has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information CJT provides on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-reach



                                                        Product Application


一般使用在混合型電子組裝類型的PCB板上，主要由于元件位置比較緊湊，

考慮到元件尺寸大小，數量等影響比較大的PCB板，雙面焊接的PCB板，

這些使用通孔回流焊接，可解決焊接需求。

 運用在例如：遙控器、錄音機、鼠標、鍵盤、電視機、電風扇、電源類等產品PCB上








配套產品

產品應用

資料下載

-

PDF文件

  • T2001系列
.
